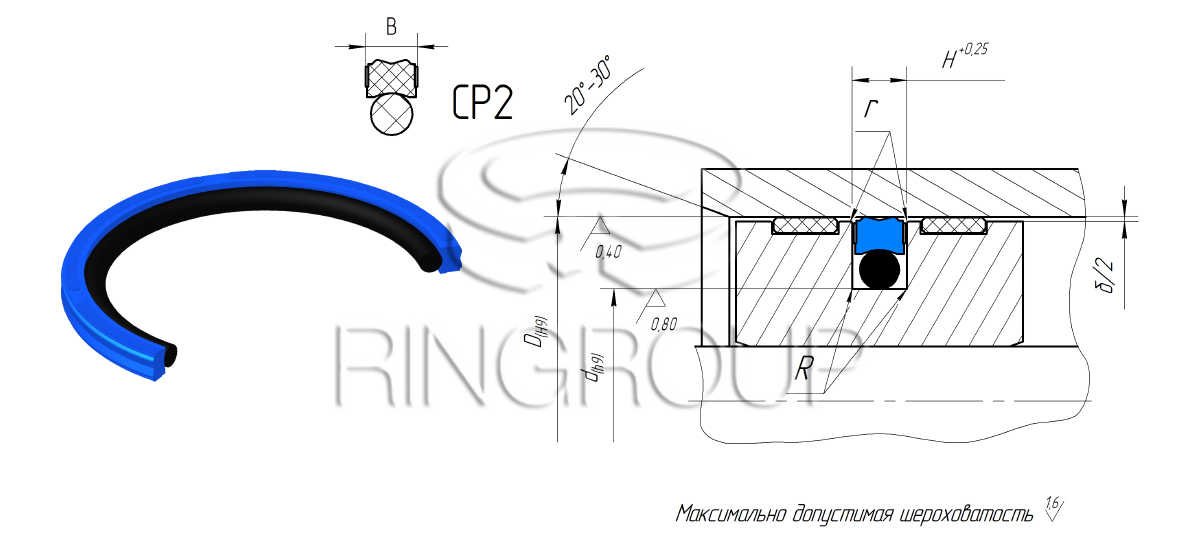

CP2 is a double acting piston sealing element which consists of two parts: sealing ring of special profile with two edges and O-Ring.
Piston seals CP2
| Name | Код | D | d | Н | В | Кольцо поджимное | |
|---|---|---|---|---|---|---|---|
|
CP2 "97A"-160 (B134c) |
B134c
|
160
|
139.0
|
8.1
|
7.8
|
круглого сечения R1M-160 (135.9x6.99)
|
|
CP2 "93A"-160 (B111c) |
B111c
|
160
|
139.0
|
8.1
|
7.8
|
круглого сечения R1M-160 (135.9x6.99)
|
|
CP2 "97A"-140 (B133c) |
B133c
|
140
|
119.0
|
8.1
|
7.8
|
круглого сечения R1M-140 (116.81x6.99)
|
|
CP2 "93A"-140 (B110c) |
B110c
|
140
|
119.0
|
8.1
|
7.8
|
круглого сечения R1M-140 (116.81x6.99)
|
|
CP2 "97A"-125 (B132c) |
B132c
|
125
|
109.5
|
6.3
|
6.0
|
круглого сечения R1M-125 (107.32x5.33)
|
|
CP2 "93A"-125 (B109c) |
B109c
|
125
|
109.5
|
6.3
|
6.0
|
круглого сечения R1M-125 (107.32x5.33)
|
|
CP2 "97A"-110 (B131c) |
B131c
|
110
|
94.5
|
6.3
|
6.0
|
круглого сечения R1M-110 (91.44x5.33)
|
|
CP2 "93A"-110 (B108c) |
B108c
|
110
|
94.5
|
6.3
|
6.0
|
круглого сечения R1M-110 (91.44x5.33)
|
|
CP2 "97A"-100 (B130c) |
B130c
|
100
|
84.5
|
6.3
|
6.0
|
круглого сечения R1M-100 (81.92x5.33)
|
|
CP2 "93A"-100 (B107c) |
B107c
|
100
|
84.5
|
6.3
|
6.0
|
круглого сечения R1M-100 (81.92x5.33)
|
|
CP2 "97A"-090 (B129c) |
B129c
|
90
|
74.5
|
6.3
|
6.0
|
круглого сечения R1M-090 (72.39x5.33)
|
|
CP2 "93A"-090 (B106c) |
B106c
|
90
|
74.5
|
6.3
|
6.0
|
круглого сечения R1M-090 (72.39x5.33)
|
|
CP2 "97A"-080 (B128c) |
B128c
|
80
|
64.5
|
6.3
|
6.0
|
круглого сечения R1M-080 (62.87x5.33)
|
|
CP2 "93A"-080 (B105c) |
B105c
|
80
|
64.5
|
6.3
|
6.0
|
круглого сечения R1M-080 (62.87x5.33)
|
|
CP2 "97A"-075 (B127c) |
B127c
|
75
|
59.5
|
6.3
|
6.0
|
круглого сечения R1M-075 (57.3х5.33)
|
|
CP2 "93A"-075 (B115c) |
B115c
|
75
|
59.5
|
6.3
|
6.0
|
круглого сечения R1M-075 (57.3х5.33)
|
|
CP2 "97A"-070 (B126c) |
B126c
|
70
|
59.0
|
4.2
|
4.0
|
круглого сечения R1M-070 (57.0х3.6)
|
|
CP2 "93A"-070 (B104c) |
B104c
|
70
|
59.0
|
4.2
|
4.0
|
круглого сечения R1M-070 (57.0х3.6)
|
|
CP2 "97A"-063 (B125c) |
B125c
|
63
|
52.0
|
4.2
|
4.0
|
круглого сечения R1M-063 (51.0x3.6)
|
|
CP2 "93A"-063 (B103c) |
B103c
|
63
|
52.0
|
4.2
|
4.0
|
круглого сечения R1M-063 (51.0x3.6)
|
|
CP2 "97A"-060 (B124c) |
B124c
|
60
|
49.0
|
4.2
|
4.0
|
круглого сечения R1M-048 (48.0х36)
|
|
CP2 "93A"-060 (B114c) |
B114c
|
60
|
49.0
|
4.2
|
4.0
|
круглого сечения R1M-048 (48.0х36)
|
|
CP2 "97A"-055 (B123c) |
B123c
|
55
|
44.0
|
4.2
|
4.0
|
круглого сечения R1M-055 (43.0x3.6)
|
|
CP2 "93A"-055 (B102c) |
B102c
|
55
|
44.0
|
4.2
|
4.0
|
круглого сечения R1M-055 (43.0x3.6)
|
