- DESCRIPTION

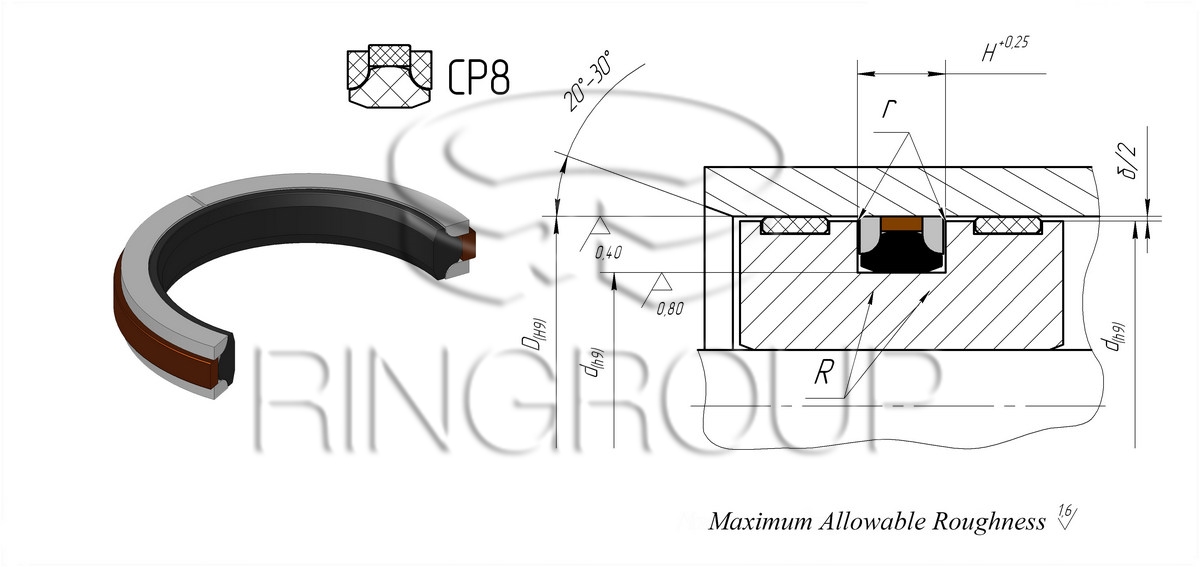

CP8 is a four piece double acting heavy duty compact seal which consists of one PTFE bronze profile ring, one sealing rubber element and two thermoplastic back-up rings.
- ADVANTAGES
• High sliding speed
• Simple groove design
• Low coefficient of friction, sliding without breakthroughs
• Long service life
• High static and the dynamic sealing effect
• High abrasive resistance
• Big gaps are allowed- MATERIAL
Central sealing element - Fluoroplastic PTFE + Bronze
Profile ring - NBR
Back-up rings - Polyamide PA- APPLICATION
• At big recurrence
• Agricultural machinery
• Construction machinery
• Material handling equipment
• Cylinders for industrial equipment with light and medium operating modes- CONDITIONS
• Temperature:
-35°С ...+100°С
• Sliding speed:
up to 1.5 m/s
• Operating pressure:
up to 50 MPa (at a temperature of 60°C)
• Media:
nbsp; mineral oils, water-oil emulsions- NOTES
The above pressure and operating speed limits are not maximum values at the same time. The frictional heat generated by pressure and velocity can lead to local heat accumulation. Do not use high pressures and speeds at the same time.
